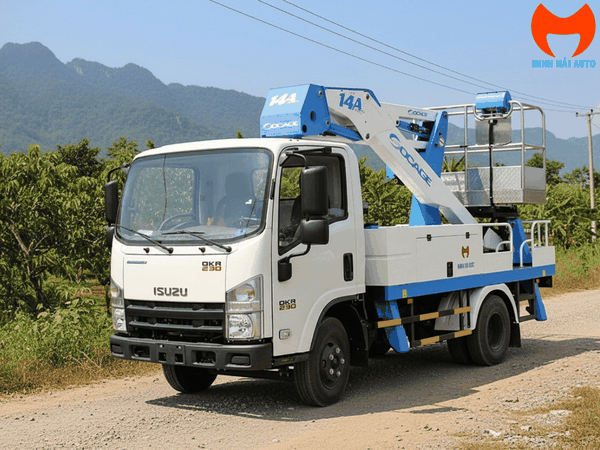

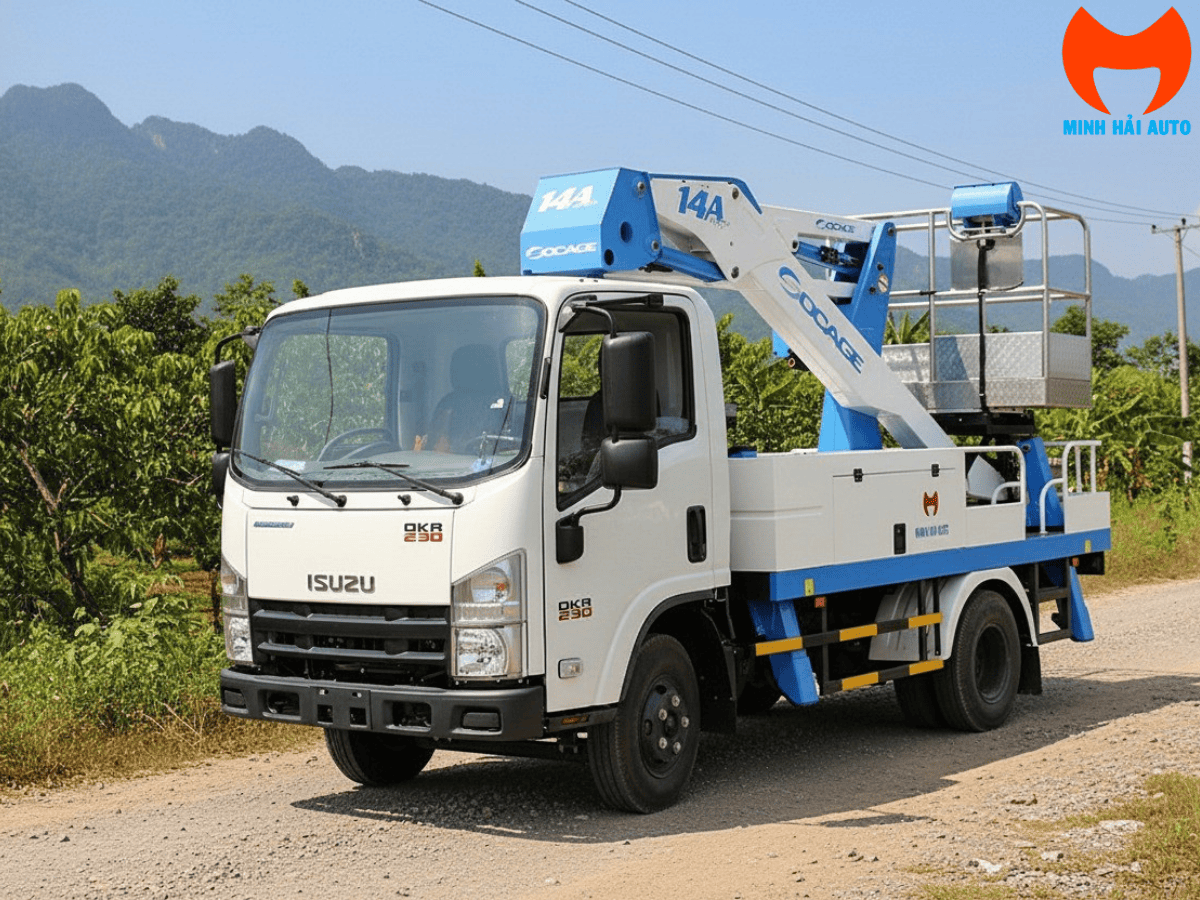

14m Isuzu Socage Aerial Work Platform | Latest Price & Specifications
Are you looking for a solution for working at height that is both safe and efficient, built on a durable truck chassis proven in Vietnam? Choosing the right aerial work platform (AWP) not only increases productivity but also ensures the ultimate safety for your team.
Minh Hai Auto is proud to introduce the 14m Isuzu Socage A314 aerial work platform, a perfect combination of the powerful, fuel-efficient Isuzu QKR77FE5 chassis and the Socage A314 lift equipment imported directly from Italy - G7 European standard. This is a comprehensive solution for installation, repair, and maintenance tasks at height.
Why is the 14m Isuzu Socage Aerial Work Platform a Smart Investment Choice?
The combination of Isuzu and Socage creates a superior product, thoroughly solving business challenges:
- Superior Reliability: The Isuzu QKR77FE5 base vehicle is famous for its durable 4JH1E4NC engine, low breakdown rate, and fuel efficiency (Euro 5 standard), optimizing operating costs.
- European Safety Standards: The Socage A314 lift equipment is imported as a complete unit from Italy, adhering to the strictest European safety standards, ensuring absolute safety for operators.
- Optimal Performance: With a working height of 13.7m and a horizontal outreach of 7.2m, the vehicle easily accesses difficult positions. The proportional control system ensures smooth and precise operations.
- High Flexibility: Its compact overall dimensions allow the vehicle to move easily in urban areas, factories, or tight construction sites.
Detailed Technical Specifications of the 14m Isuzu Socage Aerial Work Platform
Below is a detailed specification table to help customers better understand the product, enabling them to make the most suitable choice for their work needs.
1. ISUZU QKR77FE5 Truck Chassis (Japan)
| Isuzu QKR77FE5 Base Vehicle Specifications | |
|---|---|
| Make / Model | ISUZU QKR77FE5 |
| Engine | 4JH1E4NC (Diesel, 4-stroke, 4-cylinder in-line, turbocharged) |
| Displacement | 2,999 cm³ |
| Max. Power | 77 kW / 3200 rpm (105 Ps) |
| Emission Standard | Euro 5 |
| Gearbox | Manual, 5 forward + 1 reverse |
| Brake System | Drum, hydraulic with vacuum assist |
| Tire Size | 7.00 - 15 |
| Gross Vehicle Weight | 5,000 kg |
| Origin | Assembled in Vietnam (Japanese components) |
2. SOCAGE A314 (14A) Aerial Work Platform Equipment (Imported from Italy)
| Socage A314 Lift Equipment Specifications | |
|---|---|
| Model | Socage A314 (14A) |
| Max. Working Height | 13.7 m (equivalent to 14m) |
| Height to Basket Floor | 11.7 m |
| Max. Horizontal Outreach | 7.2 m (from center of slew) |
| Max. Basket Capacity | 225 kg (equivalent to 2 people + tools) |
| Standard Basket Dimensions | 140 x 70 x 110 cm (aluminum or composite material) |
| Basket Rotation (left/right) | 90° + 90° |
| Slew Rotation | 360° continuous (unlimited) |
| Control System | Proportional hydraulic, with controls on basket and at base |
| Outrigger System | 4 hydraulic outriggers, A-type (or H-type), ensuring maximum stability |
| Origin | Imported as a complete unit from Italy (G7 Standard) |
Analysis of the Superior Safety Features of Socage A314
Safety is the most critical factor when operating aerial work platforms. The Socage A314 model is equipped with a multi-layered safety system, including:
- Automatic basket leveling: Ensures the basket floor is always parallel to the ground, creating a safe and comfortable workspace.
- Emergency stop buttons: Located at all control stations, allowing for an immediate shutdown in case of an incident.
- Hydraulic holding valves (anti-drop): Keep the boom and basket in position even if there is a loss of hydraulic pressure.
- Manual emergency lowering system: Allows the basket to be safely lowered to the ground in case of power failure.
- Overload and tilt sensors: Warn and prevent operation if the load exceeds the limit or the vehicle is parked on an unstable surface.
- Outrigger interlock: The boom system will not operate until the outriggers are stably and securely deployed.
Practical Applications of the 14m Isuzu Aerial Work Platform
With its superior specifications and features, the 14m Isuzu Socage aerial work platform is the ideal equipment for many industries:
- Urban greenery: Pruning trees, maintaining green spaces in parks, and on medians.
- Power and telecommunications: Installing, repairing, and maintaining power lines and fiber optic cables.
- Construction and building maintenance: Installing glass, painting walls, industrial cleaning, and roof repairs.
- Advertising and events: Installing billboards, hanging banners, and setting up lighting systems.
If your work requires greater heights, you can also refer to the 20m aerial work platform models or the 28m Socage version for the optimal choice.
14m Isuzu Aerial Work Platform Pricing and Policies at Minh Hai Auto
Minh Hai Auto is the official importer and distributor of Socage aerial work platforms in Vietnam. We are committed to providing customers with quality products at the most competitive prices, along with professional after-sales service.
75% Installment Support
Partnerships with major banks, quick procedures, preferential interest rates.
Nationwide Delivery
Support for transportation and vehicle handover to customers across the country.
12-Month Warranty
Official warranty policy, spare parts are always available.
Contact for Consultation and Pricing
Customers who wish to purchase products or need consultation, please contact us directly via the information below:
Minh Hai Equipment and Materials Joint Stock Company
- 📍 Hanoi: No. 40 Ngo Gia Tu, Viet Hung Ward, Hanoi
- 📍 HCMC: 138/7 An Phu Dong 03, District 12, Ho Chi Minh City
- 📞 Hotline: 033.204.6292
- 📧 Email: mh.xuanhien@gmail.com
- 📠 Fax: 0243 657 3666
- 🌐 Website: mh333.vn | thegioixecau.vn
- Fanpage: Facebook Minh Hai Auto
- Tiktok: @xechuyendung333
Frequently Asked Questions (FAQ)
How far can the 14m Isuzu aerial work platform reach?
The Isuzu Socage A314 has a maximum horizontal outreach of 7.2 meters, calculated from the center of the slew. This allows the vehicle to access work positions far away without needing to move the vehicle multiple times.
What is the basket capacity of the Socage A314?
The basket of the Socage A314 model has a maximum capacity of 225 kg. This load is equivalent to 2 operators with all the necessary tools and equipment for the job.
What is the origin of the Socage lift equipment?
The entire specialized lift equipment, including the boom, basket, and hydraulic system, model Socage A314, is imported as a complete unit from Italy, a G7 country famous for its precision engineering.
Is installment support available for purchasing the 14m aerial work platform?
Yes. At Minh Hai Auto, we offer an installment support policy of up to 75% of the vehicle's value. We partner with many reputable banks to ensure quick procedures and the best interest rates for customers.
